C 磁盘格式化

如果想用C语言格式化磁盘，下面是一些资料。

－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－

－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－
来源：

===============================================================================
GNU libparted API
===============================================================================

by Andrew Clausen <clausen@gnu.org>

Copyright (C) 1999, 2000, 2001, 2002, 2003 Free Software Foundation, Inc.

Permission is granted to copy, distribute and/or modify this document
under the terms of the GNU Free Documentation License, Version 1.1
or any later version published by the Free Software Foundation;
with the no Invariant Sections, with the no Front-Cover Texts, and
with no Back-Cover Texts. A copy of the license is included in the
file, COPYING.DOC.


CONTENTS
--------

1 Introduction
2 Initialising libparted
3 PedDevice
4 PedDisk, PedDiskType
5 PedGeometry
6 PedPartition, PedPartitionType
7 PedFileSystem, PedFileSystemType
8 PedConstraint, PedAlignment
9 PedTimer
10 Exceptions

-------------------------------------------------------------------------------
1 INTRODUCTION
-------------------------------------------------------------------------------

GNU Parted is built on top of libparted, which does all of the real work.
libparted provides an API capable of manipulating partition tables, and
the filesystems on them.

The main motivation for separating the back-end into a separate library was
to encourage different GNU/Linux distributions to encorporate their own
customized front-end into the install process.

This documents the API -- not the implementation details of libparted.
Documentation that is not relevant to programs using the API are marked with
INTERNAL. Apart from this file, a good place to look would be
parted/parted.c, the front-end's source, and the TUTORIAL file (not finished
yet!).

This documentation isn't as complete as it should be. Feel free to ask
questions, either to me personally (clausen@gnu.org), or to the mailing list
(bug-parted@gnu.org).

1.1 TERMINOLOGY
-------------------
Some of the terminology is a bit weird, so you might want to read this.

CONSTRAINT a set of conditions that must be satisfied, for
a given GEOMETRY of a PARTITION.

DEVICE a storage device.

DISK a storage device, with a valid partition table.

EXCEPTION an event that needs attention.

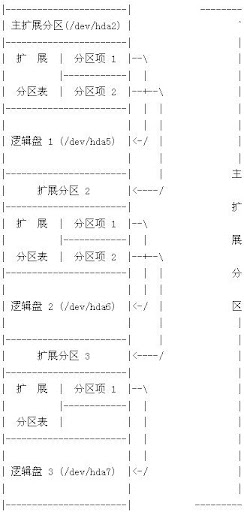

EXTENDED PARTITION a PRIMARY PARTITION, that may contain LOGICAL
PARTITIONS instead of a file system. There is at most
one extended partition.

FILE SYSTEM any data that resides on a partition. For the purposes
for GNU Parted, this includes swap devices.

GEOMETRY a description of a continuous region on a disk. eg,
partitions have a geometry.

HIDDEN PARTITION a partition that is hidden from MS operating systems.
Only FAT partitions may be hidden.

LOGICAL PARTITION like normal partitions, but they lie inside the
extended partition.

PARTITION a continuous region on a disk where a file system may
reside.

PRIMARY PARTITION a normal, vanilla, partition.

PARTITION TABLE also, DISK LABEL. A description of where the
partitions lie, and information about those partitions.
For example, what type of file system resides on them.
The partition table is usually at the start of the
disk.

TIMER a progress meter. It is an entity that keeps track
of time, and who to inform when something interesting
happens.

1.2 DESIGN
--------------
libparted has a fairly object-oriented design. The most important objects are:

PedArchitecture describes support for an "archicture", which is sort
of like "operating system", but could also be,
for example, another libparted environment, EVMS, etc.
PedConstraint a constraint on the geometry of a partition
PedDevice a storage device
PedDisk a device + partition table
PedFileSystem a filesystem, associated with a PedGeometry, NOT a
PedPartition.
PedGeometry a continious region on a device
PedPartition a partition (basically PedGeometry plus some attributes)
PedTimer a timer keeps track of progress and time

All functions return 0 (or NULL) on failure and non-zero (or non-NULL) on
success. If a function fails, an exception is thrown. This may be handled by
either an exception handler, or the calling function (see the section on
exceptions).

All objects should be considered read-only; they should only be modified by
calls to libparted's API.

-------------------------------------------------------------------------------
2 INITIALISING LIBPARTED
-------------------------------------------------------------------------------

Headers for libparted can be included with:

#include <parted/parted.h>

Parted automatically initialises itself via an __attribute__ ((constructor))
function.

However, you might want to set the exception handler with
ped_exception_set_handler(). libparted does come with a default exception
handler, if you're feeling lazy.

Here's a minimal example:

#include <parted/parted.h>

int
main()
{
/* automatically initialized */
ped_exception_set_handler(exception_handler); /* see section 7 */
return 0;
/* automatically cleaned up */
}

-----------------------------------------------------------------------------
3 PEDDEVICE
-----------------------------------------------------------------------------

interface: <parted/device.h>
implementation: libparted/device.c, libparted/llseek.c.

When ped_device_probe_all() is called, libparted attempts to detect all
devices. It constructs a list, which can be accessed with
ped_device_get_next().
If you want to use a device that isn't on the list, use
ped_device_get(). Also, there may be OS-specific constructors, for creating
devices from file descriptors, stores, etc. For example,
ped_device_new_from_store().

3.1 FIELDS
--------------
#define PED_SECTOR_SIZE 512
typedef long long PedSector;

/* removal from API planned */
typedef enum {
PED_DEVICE_UNKNOWN = 0,
PED_DEVICE_SCSI = 1,
PED_DEVICE_IDE = 2,
PED_DEVICE_DAC960 = 3,
PED_DEVICE_CPQARRAY = 4,
PED_DEVICE_FILE = 5,
PED_DEVICE_ATARAID = 6,
PED_DEVICE_I2O = 7
} PedDeviceType;

typedef struct _PedCHSGeometry PedCHSGeometry;

struct _PedCHSGeometry {
int cylinders;
int heads;
int sectors;
};

typedef struct _PedDevice PedDevice;

struct _PedDevice {
PedDevice* next;

char* model;
char* path;

PedDeviceType type; /* removal from API planned */
int sector_size;
PedSector length;

int open_count;
int dirty;
int external_mode;
int boot_dirty;

PedCHSGeometry hw_geom;
PedCHSGeometry bios_geom;
short host, did;

void* arch_specific;
};

Useful fields are:

char* model A description of the hardware manufacturer and
model.

char* path Usually the block device. Eg. /dev/sdb

PedSector length The size of the device, in sectors

3.2 FUNCTIONS
-----------------

void ped_device_probe_all ()
Attempts to detect all devices.

void ped_device_free_all ()
Closes/frees all devices. Called by ped_done(), so you do not need
to worry about it.

PedDevice* ped_device_get (char* name)
Gets the device "name", where name is usually the block device, e.g.
/dev/sdb. If the device wasn't detected with ped_device_probe_all(),
an attempt will be made to detect it again. If it is found, it will
be added to the list.

PedDevice* ped_device_get_next (PedDevice* dev)
Returns the next device that was detected by ped_device_probe_all(), or
calls to ped_device_get_next(). If dev is NULL, returns the first
device. Returns NULL if dev is the last device.

int ped_device_open (PedDevice* dev)
Attempts to open dev, to allow use uf ped_device_read(),
ped_device_write() and ped_device_sync(). Returns zero on failure.
May allocate resources. Any resources allocated here will
be freed by a final ped_device_close(). (ped_device_open() may be
called multiple times... it's a ref-count-like mechanism)

int ped_device_close (PedDevice* dev)
Closes dev. Returns zero on failure.
If this is the final close, then resources allocated by
ped_device_open() are freed.

void ped_device_destroy (PedDevice* dev)
Destroys a device and removes it from the device list, and frees
all resources associated with the device (all resources allocated
when the device was created).

int ped_device_read (PedDevice* dev, void* buffer, PedSector start,
PedSector count)
INTERNAL: Reads count sectors, beginning with sector start, from dev.
Returns zero on failure.

int ped_device_write (PedDevice* dev, void* buffer, PedSector start,
PedSector count)
INTERNAL: Writes count sectors, beginning with sector start, from dev.
Returns zero on failure.

int ped_device_sync (PedDevice* dev)
INTERNAL: Flushes the write cache.
Returns zero on failure.

int ped_device_begin_external_access (PedDevice* dev)
Begins external access mode. External access mode allows you to
safely do IO on the device. If a PedDevice is open, then you should
not do any IO on that device, e.g. by calling an external program
like e2fsck, unless you put it in external access mode. You should
not use any libparted commands that do IO to a device, e.g.
ped_file_system_{open|resize|copy}, ped_disk_{read|write}), while
a device is in external access mode.
Also, you should not ped_device_close() a device, while it is
in external access mode.
Note: ped_device_begin_external_access_mode() does things like
tell the kernel to flush its caches.
Returns zero on failure.

int ped_device_end_external_access (PedDevice* dev)
Ends external access mode.
Note: ped_device_end_external_access_mode() does things like
tell the kernel to flush it's caches.
Returns zero on failure.

-----------------------------------------------------------------------------
4 PEDDISK, PEDDISKTYPE
-----------------------------------------------------------------------------

interface: <parted/disk.h>
implementation: libparted/disk.c

Most programs will need to use ped_disk_new() or ped_disk_new_fresh() to get
anything done. A PedDisk is always associated with a device, and has a
partition table. There are different types of partition tables (or disk
labels). These are represented by PedDiskType's.

4.1 FIELDS
--------------

typedef enum {
PED_DISK_TYPE_EXTENDED=1, /* supports extended partitions */
PED_DISK_TYPE_PARTITION_NAME=2 /* supports partition names */
} PedDiskTypeFeature;

struct _PedDiskType {
PedDiskType* next;
char* name;
PedDiskOps* ops;

PedDiskTypeFeature features; /* bitmap of supported features */
};

Useful fields are:
char* name the name of the partition table type.

struct _PedDisk {
PedDevice* dev;
PedDiskType* type;
PedPartition* part_list;

void* disk_specific;

/* office use only ;-) */
int needs_clobber;
int update_mode;
};

Useful fields are:
PedDevice* dev the device where the partition table lies
PedDiskType* type the type of disk label
PedPartition* part_list this is the list of partitions on the disk.
It should be accessed with
ped_disk_next_partition()

4.2 FUNCTIONS
-----------------

PedDiskType* ped_disk_type_get_next (PedDiskType* type)
Returns the next disk type registers, after "type". If "type" is
NULL, returns the first disk type. If "type" is the last registered
disk type, returns NULL.

PedDiskType* ped_disk_type_get (char* name)
Returns the disk type with a name of "name". If there are none,
returns NULL.

int ped_disk_type_check_feature (const PedDiskType* disk_type,
PedDiskTypeFeature feature)
Returns 1 if the partition table type, "disk_type" has support
for "feature". Returns 0 otherwise.

PedDiskType* ped_disk_probe (PedDevice* dev)
Returns the type of partition table detected on "dev", or NULL
if none was detected.

int ped_disk_clobber (PedDevice* dev)
Overwrites all partition table signatures on "dev".

int ped_disk_clobber_exclude (PedDevice* dev, const PedDiskType* exclude)
Overwrites all partition table signatures on "dev", EXCEPT
the signature for type "exclude".

PedDisk* ped_disk_new (PedDevice* dev)
Constructs a PedDisk object from dev, and reads the partition table.
Returns zero on failure.
WARNING: this can modify dev->cylinders, dev->heads and dev->sectors,
because the partition table might indicate that the existing values
are incorrect.

PedDisk* ped_disk_new_fresh (PedDevice* dev, PedDiskType* type)
Creates a partition table on dev, and constructs a PedDisk object for
it. Returns NULL on failure.

PedDisk* ped_disk_duplicate (PedDisk* disk)
Returns a "deep" copy of "disk" or NULL on failure.

void ped_disk_destroy (PedDisk* disk)
Closes "disk".

int ped_disk_commit (PedDisk* disk)
Writes the partition table to "disk" (i.e. disk->dev), and informs
the operating system of the new layout. This is implemented by
calling ped_disk_commit_to_dev() and then ped_disk_commit_to_os().
Returns 0 on failure.

int ped_disk_commit_to_dev (PedDisk* disk)
Writes the partition table to "disk" (i.e. disk->dev).
Returns 0 on failure.

int ped_disk_commit_to_os (PedDisk* disk)
Tells the operating system kernel about the partition table layout
of disk. This is rather loosely defined... depending on which
operating system, etc. For example, on old versions of Linux,
it simply calls the BLKRRPART ioctl, which tells the kernel to
reread the partition table. On newer versions (2.4.x), it will
use the new blkpg interface to tell Linux where each partition
starts/ends, etc. In this case, Linux need not have support for
this type of partition table.
Returns 0 on failure.

int ped_disk_check (PedDisk* disk)
Checks for errors on the partition table, "disk". Note: most
error checking occurs when the partition table is loaded from
disk, in ped_disk_new(). Returns 1 for no errors, 0 otherwise.

void ped_disk_print (PedDisk* disk)
Prints a summary of disk's partitions. Useful for debugging.

int ped_disk_add_partition (PedDisk* disk, PedPartition* part,
PedConstraint* constraint)
Adds "part" to "disk".
"part"'s geometry may be changed, subject to "constraint".
You could set "constraint" to ped_constraint_exact(&part->geom), but
many partition table schemes have special requirements on the start
and end of partitions. Therefore, having an overly strict constraint
will probably mean that ped_disk_add_partition() will fail (in which
case, "part" will be left unmodified)
"part" is assigned a number (part->num) in this process.
Returns 0 on failure.

int ped_disk_remove_partition (PedDisk* disk, PedPartition* part)
Removes "part" from "disk". If "part" is an extended partition,
it must contain no logical partitions.
"part" is *NOT* destroyed. The caller must call
ped_partition_destroy(), or use ped_disk_delete_partition() instead.

int ped_disk_delete_partition (PedDisk* disk, PedPartition* part)
Removes "part" from "disk", and destroys "part". Returns 0 on failure.

int ped_disk_delete_all (PedDisk* disk)
Removes and destroys all partitions on "disk". Returns 0 on failure.

int ped_disk_set_partition_geom (PedDisk* disk, PedPartition* part,
PedConstraint* constraint, PedSector start,
PedSector end)
Sets the geometry of "part". This can fail for many reasons, e.g.
can't overlap with other partitions. If it does fail, "part" will
remain unchanged. Returns 0 on failure.
"part"'s geometry may be set to something different from
"start" and "end" subject to "constraint".

int ped_disk_maximize_partition (PedDisk* disk, PedPartition* part,
PedConstraint* constraint)
Grows "part"'s geometry to the maximum possible subject to
"constraint". The new geometry will be a superset of the old geometry.
Returns 0 on failure.

PedGeometry* ped_disk_get_max_partition_geometry (PedDisk* disk,
PedPartition* part, PedConstraint* constraint)
Returns the maximum geometry "part" can be grown to, subject to
"constraint". Returns NULL on failure.

int ped_disk_minimize_extended_partition (PedDisk* disk)
Reduces the extended partition on "disk" to the minimum possible.
Returns 0 on failure.

PedPartition* ped_disk_next_partition (PedDisk* disk, PedPartition* part)
Returns the next partition after "part" on "disk". If "part" is NULL,
returns the first partition. If "part" is the last partition, returns
NULL. If "part" is an extended partition, returns the first logical
partition.
If this is called repeatedly passing the return value as
"part", a depth-first traversal is executed.

PedPartition* ped_disk_get_partition (PedDisk* disk, int num)
Returns the partition numbered "num". If no such partition exists,
returns NULL.

PedPartition* ped_disk_get_partition_by_sector (PedDisk* disk, PedSector sect)
Returns the partition that 'owns' "sect". If sect lies inside a
logical partition, the logical partition is returned.

PedPartition* ped_disk_extended_partition (PedDisk* disk)
Returns the extended partition, or NULL if there isn't one.

int ped_disk_get_primary_partition_count (PedDisk* disk)
Returns the number of primary partitions.

int ped_disk_get_max_primary_partition_count (PedDisk* disk)
Returns the maxinum number of primary partitions this partition
table can have.

int ped_disk_get_last_partition_num (PedDisk* disk)
Returns the highest part->num of all partitions.

-----------------------------------------------------------------------------
5 PEDGEOMETRY
-----------------------------------------------------------------------------

interface: <parted/geom.h>
implementation: libparted/geom.c

PedGeometry is created by ped_geometry_new() from a PedDevice. It represents
a continuous region on a device. All addressing through a PedGeometry object
is in terms of the start of the continuous region.

The following conditions are always true on a PedGeometry object:
* start + length - 1 == end
* length > 0 [STRICTLY > 0]
* start >= 0
* end < dev->length

5.1 FIELDS
--------------
struct _PedGeometry {
PedDevice* dev;
PedSector start;
PedSector length;
PedSector end;
};

Useful fields:
PedDevice* dev the device.
PedSector start the start of the region in sectors (one
sector = 512 bytes).
PedSector length the length of the region in sectors.
PedSector end the end of the region in sectors.

5.2 FUNCTIONS
-----------------
int ped_geometry_init (PedGeometry* geom, const PedDevice* dev, PedSector start,
PedSector length)
Initialises a PedGeometry object.

PedGeometry* ped_geometry_new (PedDevice* dev, PedSector start,
PedSector length)
Creates a new PedGeometry object on "disk", starting at "start", of
"length" sectors (units of 512 byte). Returns NULL on failure.

PedGeometry* ped_geometry_duplicate (PedGeometry* geom)
Duplicates a PedGeometry object. Returns NULL on failure.

PedGeometry* ped_geometry_intersect (const PedGeometry* a, const PedGeometry* b)
If a and b overlap, returns a PedGeometry object that refers to the
overlapping region. If not, returns NULL.

void ped_geometry_destroy (PedGeometry* geom)
Destroys a PedGeometry object.

void ped_geometry_set (PedGeometry* geom, PedSector start, PedSector length)
Assigns a new geom->start, geom->end and geom->length to "geom".
geom->end is calculated from "start" and "length".

void ped_geometry_set_start (PedGeometry* geom, PedSector start)
Assigns a new geom->start to "geom" without changing geom->end.
geom->length is updated accordingly.

void ped_geometry_set_end (PedGeometry* geom, PedSector end);
Assigns as new geom->end to "geom" without changing geom->start.
geom->length is updated accordingly.

int ped_geometry_test_overlap (PedGeometry* a, PedGeometry* b)
Tests if "a" overlaps with "b". That is, they lie on the same
physical device, and they share (some of) the same physical region.

int ped_geometry_test_inside (PedGeometry* a, PedGeometry* b);
Tests if "b" lies completely within "a". That is, they lie on the same
physical device, and all of the "b"'s region is contained inside
"a"'s.

int ped_geometry_test_equal (PedGeometry* a, PedGeometry* b);
Tests if "a" and "b" refer to the same physical region.

int ped_geometry_test_sector_inside (const PedGeometry* geom, PedSector sect)
Tests if sect is inside geom.

int ped_geometry_read (PedGeometry* geom, void* buffer, PedSector offset,
PedSector count)
Reads data from the region represented by "geom". "offset" is the
location from within the region, not from the start of the disk.
"count" sectors are read into "buffer".
This is essentially equivalent to:

ped_device_read (geom->disk->dev, buffer, geom->start + offset, count)

Returns 0 on failure.

int ped_geometry_write (PedGeometry* geom, void* buffer, PedSector offset,
PedSector count)
Writes data into the region represented by "geom". "offset" is the
location from within the region, not from the start of the disk.
"count" sectors are written. Returns 0 on failure.

PedSector ped_geometry_check (PedGeometry* geom, void* buffer,
PedSector buffer_size, PedSector offset,
PedSector granularity, PedSector count)
Checks a region for physical defects on "geom". "buffer" is used
for temporary storage for ped_geometry_check(), and has an undefined
value. "buffer" is "buffer_size" sectors long.
The region checked starts at "offset" sectors inside the
region represented by "geom", and is "count" sectors long.
The first bad sector is returned, or 0 if there were no physical
errors.
"granularity" specificies how sectors should be grouped
together. The first bad sector to be returned will always be in
the form:
offset + n * granularity

int ped_geometry_sync (PedGeometry* geom)
Flushes the cache on "geom". Returns 0 on failure.

PedSector ped_geometry_map (PedGeometry* dst, PedGeometry* src,
PedSector sector)
If "src" and "dst" overlap, and "sector" on "src" also exists on
"dst", then the equivalent sector is retruned.
Returns -1 if "sector" is not within "dst"'s space.

-----------------------------------------------------------------------------
6 PEDPARTITION, PEDPARTITIONTYPE
-----------------------------------------------------------------------------

interface: <parted/disk.h>
implementation: libparted/disk.c

A PedPartition represents a partition (surprise!). PedPartitions have weird
relationships with PedDisks. Hence, many functions for manipulating partitions
will be called ped_disk_* - so have a look at the PedDisk documentation as well.

Parted creates "imaginary" free space and metadata partitions. You can't
do any operations on these partitions (like set_geometry, {set,get}_flag, etc.)
Partitions that are not free space or metadata partitions are said to
be "active" partitions. You can use ped_partition_is_active() to check.

6.1 FIELDS
--------------
typedef enum {
PED_PARTITION_NORMAL = 0x00,
PED_PARTITION_LOGICAL = 0x01,
PED_PARTITION_EXTENDED = 0x02,
PED_PARTITION_FREESPACE = 0x04,
PED_PARTITION_METADATA = 0x08
} PedPartitionType;

typedef enum {
PED_PARTITION_BOOT=1,
PED_PARTITION_ROOT=2,
PED_PARTITION_SWAP=3,
PED_PARTITION_HIDDEN=4,
PED_PARTITION_RAID=5,
PED_PARTITION_LVM=6,
PED_PARTITION_LBA=7
} PedPartitionFlag;
#define PED_PARTITION_FIRST_FLAG PED_PARTITION_BOOT
#define PED_PARTITION_LAST_FLAG PED_PARTITION_LBA

struct _PedPartition {
PedPartition* prev;
PedPartition* next;

PedDisk* disk;
PedGeometry geom;
int num;

PedPartitionType type;
const PedFileSystemType* fs_type;
PedPartition* part_list; /* for extended partitions */

void* disk_specific;
};

Useful fields:
PedDisk* disk the partition table of the partition
PedGeometry geom geometry of the partition
int num the partition number. In Linux, this is the
same as the minor number. No assumption should
be made about "num" and "type" - different
disk labels have different rules.
PedPartitionType type the type of partition: a bit field of
PED_PARTITION_LOGICAL, PED_PARTITION_EXTENDED,
PED_PARTITION_METADATA and
PED_PARTITION_FREESPACE. Both the first two,
and the last two are mutually exclusive.
An extended partition is a
primary partition that may contain logical
partitions. There is at most one extended
partition on a disk.
A logical partition is like a primary
partition, except it's inside an extended
partition.
Internally, pseudo partitions are
allocated to represent free space, or disk
label meta-data. These have the
PED_PARTITION_FREESPACE or
PED_PARTITION_METADATA bit set.
PedPartition* part_list Only used for an extended partition. The list
of logical partitions (and free space and
metadata within the extended partition).
PedFileSystemType* fs_type The type of file system on the partition.
NULL if unknown.

6.2 FUNCTIONS
-----------------
PedPartition* ped_partition_new (PedDisk* disk,
PedPartitionType type,
const PedFileSystemType* fs_type
PedSector start, PedSector end)
Creates a new PedPartition on "disk", starting at sector "start",
and ending at "end". "type" is one of 0 ("normal"),
PED_PARTITION_LOGICAL or PED_PARTITION_EXTENDED. (PED_PARTITION_FREE
and PED_PARTITION_METADATA are used internally).
The new partition is NOT added to the disk's internal
representation of the partition table. Use ped_disk_add_partition()
to do this.

void ped_partition_destroy (PedPartition* part)
Destroys a partition. Should not be called on a partition that is
in a partition table. Use ped_disk_delete_partition() instead.

int ped_partition_is_active (PedPartition* part)
Returns whether or not the partition is "active". If part->type is
PED_PARTITION_METADATA or PED_PARTITION_FREE, then it's inactive.
Otherwise, it's active.

int ped_partition_set_flag (PedPartition* part, PedPartitionFlag flag,
int state)
Sets the state (1 or 0) of a flag on a partition.
Flags are disk label specific, although they have a global
"namespace". e.g. the flag PED_PARTITION_BOOT roughly means "this
partition is bootable". But, this means different things on different
disk labels (and may not be defined on some disk labels). For example,
on msdos disk labels, there can only be one boot partition, and this
refers to the partition that will be booted from on startup. On PC98
disk labels, the user can choose from any bootable partition on startup.
It is an error to call this on an unavailable flag -- see
ped_partition_is_flag_available().

int ped_partition_get_flag (const PedPartition* part, PedPartitionFlag flag)
Returns the state (1 or 0) of a flag on a partition.
It is an error to call this on an unavailable flag -- see
ped_partition_is_flag_available().

int ped_partition_is_flag_available (const PedPartition* part,
PedPartitionFlag flag)
Returns 1 if a flag is available on a partition, 0 otherwise.

int ped_partition_set_system (PedPartition* part, PedFileSystemType* fs_type)
Sets the system type on the partition to be fs_type. Note: the
file system may be opened, to get more information about the
file system, e.g. to determine if it's FAT16 or FAT32.

int ped_partition_set_name (PedPartition* part, const char* name)
Sets the name of a partition. This will only work if the disk label
supports it. You can use this to check:
ped_disk_type_check_feature (part->disk->type,
PED_DISK_TYPE_PARTITION_NAME);
Note: the "name" will not be modified by libparted. It can be free()'d
by the caller immediately after ped_partition_set_name() is called.

const char* ped_partition_get_name (const PedPartition* part)
Returns the name of a partition. This will only work if the disk label
supports it.
Note: the returned string should not be modified. It should
not be referenced after the partition is destroyed.

char* ped_partition_get_path (const PedPartition* part)
Returns a path that can be used to address the partition in the
operating system. You must free(2) the string when you're
finished with it.

int ped_partition_is_busy (PedPartition* part)
Returns 1 if a partition is busy, i.e. mounted, 0 otherwise. If part
is an extended partition, then it is busy if any logical partitions are
mounted.

const char* ped_partition_type_get_name (PedPartitionType part_type)
Returns a name that seems mildly appropriate for a partition type. Eg,
if you pass (PED_PARTITION_LOGICAL & PED_PARTITION_FREESPACE), it
will return "free". This isn't to be taken too seriously - it's just
useful for user interfaces, so you can show the user something ;-)
NOTE: the returned string will be in English. However,
translations are provided, so the caller can call
dgettext("parted", RESULT) on the result.

const char* ped_partition_flag_get_name (PedPartitionFlag flag)
Returns a name for a flag, e.g. PED_PARTITION_BOOT will return
"boot".
NOTE: the returned string will be in English. However,
translations are provided, so the caller can call
dgettext("parted", RESULT) on the result.

PedPartitionFlag ped_partition_flag_get_by_name (const char* name)
Returns the flag associated with "name". "name" can be the English
string, or the translation for the native language.

PedPartitionFlag ped_partition_flag_next (PedPartitionFlag flag)
Iterates through all flags. Returns the next flag.
ped_partition_flag_next(0) returns the first flag. Returns 0 if there
are no more flags.

-----------------------------------------------------------------------------
7 PEDFILESYSTEM, PEDFILESYSTEMTYPE
-----------------------------------------------------------------------------

interface: <parted/filesys.h>
implementation: libparted/filesys.c,
each file system type in fs_<file system name>

File systems exist on a PedGeometry - NOT a PedPartition.


7.1 FIELDS
--------------
struct _PedFileSystemType {
PedFileSystemType* next;
const char* const name;
PedFileSystemOps* const ops;
};

Useful fields:
char* name name of the file system type

struct _PedFileSystem {
PedFileSystemType* type;
PedGeometry* geom;
int checked;

void* type_specific;
};

Useful fields:
PedFileSystemType* type the file system type
PedGeometry* geom where the file system actually is.
int checked 1 if the file system has been checked. 0
otherwise.

7.2 FUNCTIONS
-----------------
PedFileSystemType* ped_file_system_type_get (char* name)
Returns the PedFileSystemType with name "name". If none is found,
returns NULL.

PedFileSystemType* ped_file_system_type_get_next (PedFileSystemType* fs_type)
Returns the next PedFileSystemType, after "fs_type". If "fs_type"
is the last one registered, returns NULL.

PedFileSystemType* ped_file_system_probe (PedGeometry* geom)
Attempts to detect a file system on "geom". If successful, returns
the PedFileSystemType. Otherwise, returns NULL.

PedGeometry* ped_file_system_probe_specific (const PedFileSystemType* fs_type,
PedGeometry* geom)
Probes for a particular type of file system, returning the region
the file system believes it occupies. Returns NULL if that file
system wasn't detected.

int ped_file_system_clobber (PedGeometry* geom)
Destroys all file system signatures, so that it won't be probed with
ped_file_system_probe(). Note: ped_file_system_create() calls this
before creating a new file system.

PedFileSystem* ped_file_system_open (PedGeometry* geom)
Opens a filesystem on "geom". Returns a PedFileSystem object if
successful. Returns NULL on failure.
This is often called in the following manner:
fs = ped_file_system_open (&part.geom)

PedFileSystem* ped_file_system_create (PedGeometry* geom,
PedFileSystemType* type,
PedTimer* timer)
Creates a new file system, and returns a PedFileSystem representing it.
Returns NULL on failure. If "timer" is non-NULL, it is used as
the progress meter.

int ped_file_system_close (PedFileSystem* fs)
Closes "fs". Returns 0 on failure.

int ped_file_system_check (PedFileSystem* fs, PedTimer* timer)
Checks "fs" for errors. Returns 0 on failure (i.e. unfixed errors).

PedFileSystem* ped_file_system_copy (PedFileSystem* fs, PedGeometry* geom,
PedTimer* timer)
Creates a new file system (of the same type) on "geom", and
copies the contents of "fs" into the new filesystem. The new
file system is returned (NULL on failure). If "timer" is non-NULL,
it is used as the progress meter.

int ped_file_system_resize (PedFileSystem* fs, PedGeometry* geom,
PedTimer* timer)
Resizes "fs" to new geometry "geom". Returns 0 on failure. Note:
"geom" should satisfy the ped_file_system_get_resize_constraint().
(This isn't asserted, so it's not a bug not to... just it's likely
to fail ;) If "timer" is non-NULL, it is used as the progress meter.

PedConstraint* ped_file_system_get_create_constraint (
const PedFileSystemType* fs_type, const PedDevice* dev)
Returns the constraint on creating the a file system of "fs_type" on
"dev" with ped_file_system_create().

PedConstraint* ped_file_system_get_resize_constraint (const PedFileSystem* fs)
Returns a constraint, that represents all of the possible ways the
file system can be resized with ped_file_system_resize(). Hints:
* if constraint->start_align->grain_size == 0, or
constraint->start_geom->length == 1, then the start can not be moved
* constraint->min_size is the minimum size you can resize the partition
to. You might want to tell the user this ;-).

PedConstraint* ped_file_system_get_copy_constraint (
const PedFileSystem* fs, const PedDevice* dev)
Returns the constraint on copying "fs" with ped_file_system_copy()
to somewhere on "dev".

-----------------------------------------------------------------------------
8 PEDCONSTRAINT, PEDALIGNMENT
-----------------------------------------------------------------------------

interface: <parted/constraint.h>, <parted/natmath.h>
implementation: libparted/constraint.c, libparted/natmath.c

Constraints are used to communicate restrictions on operations (only
ped_file_system_resize() at the moment). Constraints are restrictions
on the location and alignment of the start and end of a partition, and the
minimum size.

"Alignments" are restrictions on the location of a sector in the form of:

sector = offset + X * grain_size

For example, logical partitions on msdos disk labels usually have a constraint
with offset = 63 and grain_size = 16065 (Long story!). An important
(and non-obvious!) property of alignment restrictions is they are closed
under intersection, i.e. if you take two constraints, like (offset, grain_size)
= (63, 16065) and (0, 4), then either:
* there are no valid solutions
* all solutions can be expressed in the form of (offset + X * grain_size)
In the example, the intersection of the constraint is (16128, 64260).

For more information on the maths, see the source -- there's a large comment
containing proofs above ped_alignment_intersect() in libparted/natmath.c

The restrictions on the location of the start and end are in the form of
PedGeometry objects -- continous regions in which the start and end must lie.
Obviously, these restrictions are also closed under intersection.

The other restriction -- the minimum size -- is also closed under intersection.
(The intersection of 2 minimum size restrictions is the maximum of the
2 values)

Therefore, constraints are closed under intersection. libparted can compute
the intersection of constraints very efficiently. Therefore, you can satisfy
an arbitary number of constraints by finding the intersection of all the
constraints.

The interface consists of construction constraints, finding the intersection
of constraints, and finding solutions to constraints.

8.1 FIELDS
--------------
struct _PedConstraint {
PedAlignment* start_align;
PedAlignment* end_align;
PedGeometry* start_range;
PedGeometry* end_range;
PedSector min_size;
PedSector max_size;
};

struct _PedAlignment {
PedSector offset;
PedSector grain_size;
};

8.2 FUNCTIONS
-----------------

int ped_constraint_init (
PedConstraint* constraint,
const PedAlignment* start_align,
const PedAlignment* end_align,
const PedGeometry* start_range,
const PedGeometry* end_range,
PedSector min_size,
PedSector max_size)
Initialises a pre-allocated piece of memory to contain a constraint.
Returns 0 on failure.

PedConstraint* ped_constraint_new (
const PedAlignment* start_align,
const PedAlignment* end_align,
const PedGeometry* start_range,
const PedGeometry* end_range,
PedSector min_size)
PedSector max_size)
Creates a new constraint. Returns NULL on failure.

PedConstraint* ped_constraint_duplicate (const PedConstraint* constraint)
Duplicates "constraint".

void ped_constraint_done (PedConstraint* constraint)
Frees up memory allocated for "constraint" initialized with
ped_constraint_init().

void ped_constraint_destroy (PedConstraint* constraint)
Frees up memory allocated for "constraint" allocated with
ped_constraint_new().

PedConstraint* ped_constraint_intersect (
const PedConstraint* a, const PedConstraint* b)
Creates a new constraint, such that a PedGeometry is a solution to the
new constraint if and only if it is a solution to both "a" and "b".
If there are no PedGeometry objects that can satisfy both "a" and
"b", then NULL is returned. NULL is a valid PedConstraint object
that can be used for all ped_constraint_* functions.

PedGeometry* ped_constraint_solve_max (const PedConstraint* constraint)
Finds the largest solution, i.e. geometry with maximum length, for
"constraint". Returns NULL if there is no solution.

PedGeometry* ped_constraint_solve_nearest (
const PedConstraint* constraint, const PedGeometry* geom)
Solves "constraint" returning the nearest to "geom". If there is no
solution, NULL is returned.

int ped_constraint_is_solution (const PedConstraint* constraint,
const PedGeometry* geom)
Returns 1 if "geom" is a solution to "constraint", and 0 if it is not a
solution.

PedConstraint* ped_constraint_any (const PedDevice* dev)
Returns a constraint, such that any (valid) PedGeometry on "dev" is
a solution.

PedConstraint* ped_constraint_exact (const PedGeometry* geom)
Returns a constraint that only has one solution: "geom".

int ped_alignment_init (PedAlignment* align, PedSector offset,
PedSector grain_size)
Initializes a preallocated piece of memory for an alignment object
(used by PedConstraint), representing all PedSector's that are of the
form "offset + X * grain_size".

PedAlignment* ped_alignment_new (PedSector offset, PedSector grain_size)
Returns an alignment object (used by PedConstraint), representing all
PedSector's that are of the form "offset + X * grain_size".

void ped_alignment_destroy (PedAlignment* align)
Frees up memory associated with "align".

PedAlignment* ped_alignment_duplicate (const PedAlignment* align)
Returns a duplicate of "align".

PedAlignment* ped_alignment_intersect (const PedAlignment* a,
const PedAlignment* b)
Returns a PedAlignment object, such that a PedSector is a solution,
if and only if it is a solutin to "a" and "b". Note: if there are no
solutions (i.e. no PedSector satisfies both "a" and "b"), then NULL
is returned. NULL is a valid PedAlignment object, and can be used
for ped_alignment_*() function.

PedSector ped_alignment_align_up (const PedAlignment* align,
const PedGeometry* geom, PedSector sector)
Returns the closest PedSector to "sector", that lies within "geom" and
satisfies the "align" restriction, or -1 if there is no such PedSector.
PedSector's that are not smaller than "sector" are always considered
closer.

PedSector ped_alignment_align_down (const PedAlignment* align,
const PedGeometry* geom, PedSector sector)
Returns the closest PedSector to "sector", that lies within "geom" and
satisfies the "align" restriction, or -1 if there is no such PedSector.
PedSector's that are not larger than "sector" are always considered
closer.

PedSector ped_alignment_align_nearest (const PedAlignment* align,
const PedGeometry* geom, PedSector sector)
Returns the closest PedSector to "sector" that lies within "geom" and
satisfies the "align" restriction, or -1 if there is no such PedSector.

int ped_alignment_is_aligned (const PedAlignment* align,
const PedGeometry* geom, PedSector sector)
Returns 1 if "sector" lies within "geom" and satisfies the "align"
restriction, and 0 otherwise.

-----------------------------------------------------------------------------
9 PEDTIMER
-----------------------------------------------------------------------------

A PedTimer keeps track of the progress of a single (possibly compound)
operation. The user of libparted constructs a PedTimer, and passes it
to libparted functions that are likely to be expensive operations
(like ped_file_system_resize). Use of timers is optional... you may
pass NULL instead.

When you create a PedTimer, you must specify a timer handler function.
This will be called when there's an update on how work is progressing.

Timers may be nested. When a timer is constructed, you can choose
to assign it a parent, along with an estimate of what proportion of
the total (parent's) time will be used in the nested operation. In
this case, the nested timer's handler is internal to libparted,
and simply updates the parent's progress, and calls its handler.

9.1 FIELDS
--------------

typedef void PedTimerHandler (PedTimer* timer, void* context);

struct _PedTimer {
float frac; /* fraction of operation done */ time_t start; /* time of start of op */
time_t now; /* time of last update (now!) */ time_t predicted_end; /* expected finish time */
const char* state_name; /* eg: "copying data" */
PedTimerHandler* handler; /* who to notify on updates */
void* context; /* context to pass to handler */};

9.2 FUNCTIONS
-----------------

PedTimer* ped_timer_new (PedTimerHandler* handler, void* context)
Creates a timer. Context will be passed in the "context"
argument in the handler, when it is invoked.

void ped_timer_destroy (PedTimer* timer)
Destroys a timer.

PedTimer* ped_timer_new_nested (PedTimer* parent, float nest_frac)
Creates a new nested timer. "parent" is the parent timer,
and "nested_frac" is the estimated proportion (between 0 and 1)
of the time that will be spent doing the nested timer's operation.
The timer should only be constructed immediately prior to
starting the nested operation. (It will be inaccurate, otherwise)

void ped_timer_destroy_nested (PedTimer* timer)
Destroys a nested timer.

void ped_timer_touch (PedTimer* timer)
INTERNAL. Updates timer->now and recomputes timer->predicted_end, and
calls the handler.

void ped_timer_reset (PedTimer* timer)
INTERNAL. Resets the timer, by setting timer->start and timer->now
to the current time.

void ped_timer_update (PedTimer* timer, float new_frac)
INTERNAL. Sets the new timer->frac, and calls ped_timer_touch().

void ped_timer_set_state_name (PedTimer* timer, const char* state_name)
INTERNAL. Sets a new name for the current "phase" of the operation,
and calls ped_timer_touch().

-----------------------------------------------------------------------------
10 EXCEPTIONS
-----------------------------------------------------------------------------

interface: <parted/exception.h>
implementation: libparted/exception.c

There are a few types of exceptions: PED_EXCEPTION_INFORMATION,
PED_EXCEPTION_WARNING, PED_EXCEPTION_ERROR, PED_EXCEPTION_FATAL,
PED_EXCEPTION_BUG.

They are "thrown" when one of the above events occur while executing
a libparted function. For example, if ped_device_open() fails because the
device doesn't exist, an exception will be thrown. Exceptions contain
text describing what the event was.
It will give at least one option for resolving the exception:
PED_EXCEPTION_FIX, PED_EXCEPTION_YES, PED_EXCEPTION_NO, PED_EXCEPTION_OK,
PED_EXCEPTION_RETRY, PED_EXCEPTION_IGNORE, PED_EXCEPTION_CANCEL.
After an exception is thrown, there are two things that
can happen:
(1) an exception handler is called, which selects how the exception
should be resolved (usually by asking the user). Also note: an exception
handler may choose to return PED_EXCEPTION_UNHANDLED. In this case, a default
action will be taken by libparted. In general, a default action will be
"safe".
(2) the exception is not handled, because the caller of the function wants
to handle everything itself. In this case, PED_EXCEPTION_UNHANDLED is
returned.

10.1 FIELDS
--------------
enum _PedExceptionType {
PED_EXCEPTION_INFORMATION=1,
PED_EXCEPTION_WARNING=2,
PED_EXCEPTION_ERROR=3,
PED_EXCEPTION_FATAL=4,
PED_EXCEPTION_BUG=5,
PED_EXCEPTION_NO_FEATURE=6
};
typedef enum _PedExceptionType PedExceptionType;

enum _PedExceptionOption {
PED_EXCEPTION_UNHANDLED=0,
PED_EXCEPTION_FIX=1,
PED_EXCEPTION_YES=2,
PED_EXCEPTION_NO=4,
PED_EXCEPTION_OK=8,
PED_EXCEPTION_RETRY=16,
PED_EXCEPTION_IGNORE=32,
PED_EXCEPTION_CANCEL=64,
};
typedef enum _PedExceptionOption PedExceptionOption;

struct _PedException {
char* message;
PedExceptionType type;
PedExceptionOption options;
};

PedExceptionType type the type of exception
PedExceptionOption options the ways an exception can be resolved

10.2 FUNCTIONS
-----------------
char* ped_exception_get_type_string (PedExceptionType ex_type)
Returns a string describing an exception type.

char* ped_exception_get_option_string (PedExceptionOption ex_opt)
Returns a string describing an exception option.

typedef PedExceptionOption (PedExceptionHandler) (PedException* ex);
void ped_exception_set_handler (PedExceptionHandler* handler)
Sets the exception handler. The exception handler should return
ONE of the options set in ex->options, indicating the way the
event should be resolved.

PedExceptionOption ped_exception_throw (PedExceptionType ex_type,
PedExceptionOption ex_opt, const char* message, ...)
INTERNAL: throws an exception. You can also use this in a front-end
to libparted.
"message" is a printf like format string. So you can do:
ped_exception_throw (PED_EXCEPTION_ERROR, PED_EXCEPTION_RETRY_CANCEL,
"Can't open %s", file_name);
Returns the option selected to resolve the exception. If the exception
was unhandled, PED_EXCEPTION_UNHANDLED is returned.

PedExceptionOption ped_exception_rethrow()
Rethrows an unhandled exception.

void ped_exception_catch()
Asserts that the exception has been resolved.

void ped_exception_fetch_all()
Indicates that exceptions should not go to the exception handler, but
passed up to the calling function(s). All calls to
ped_exception_throw() will return PED_EXCEPTION_UNHANDLED.

void ped_exception_leave_all()
Indicates that the calling function does not want to accept any
responsibilty for exceptions any more. Note: a caller of that
function may still want responsibility, so ped_exception_throw()
may not invoke the exception handler.

MBR结构&扩展int13h调用详解

第一部分 简 介 一. 硬盘结构简介 1. 硬盘参数释疑 到目前为止, 人们常说的硬盘参数还是古老的 CHS (Cylinder/ Head/Sector)参数. 那么为什么要使用这些参数, 它们的意义是什么? 它们的取值范围是什么? 很久以前, 硬盘的容量还非常小的时候, 人们采用与软盘类似的结 构生产硬盘. 也就是硬盘盘片的每一条磁道都具有相同的扇区数. 由此 产生了所谓的3D参数 (Disk Geometry). 既磁头数(Heads), 柱面数 (Cylinders), 扇区数(Sectors),以及相应的寻址方式. 其中: 磁头数(Heads) 表示硬盘总共有几个磁头,也就是有几面盘片, 最大 为 255 (用 8 个二进制位存储); 柱面数(Cylinders) 表示硬盘每一面盘片上有几条磁道, 最大为 1023 (用 10 个二进制位存储); 扇区数(Sectors) 表示每一条磁道上有几个扇区, 最大为 63 (用 6 个二进制位存储). 每个扇区一般是 512个字节, 理论上讲这不是必须的, 但好象没有取 别的值的. 所以磁盘最大容量为: 255 * 1023 * 63 * 512 / 1048576 = 8024 MB ( 1M = 1048576 Bytes ) 或硬盘厂商常用的单位: 255 * 1023 * 63 * 512 / 1000000 = 8414 MB ( 1M = 1000000 Bytes ) 在 CHS 寻址方式中, 磁头, 柱面, 扇区的取值范围分别为 0 到 Heads - 1, 0 到 Cylinders - 1, 1 到 Sectors (注意是从 1 开始). 2. 基本 Int 13H 调用简介 BIOS Int 13H 调用是 BIOS 提供的磁盘基本输入输出中断调用, 它可以 完成磁盘(包括硬盘和软盘)的复位, 读写, 校验, 定位, 诊断, 格式化等功能. 它使用的就是 CHS 寻址方式, 因此最大识能访问 8 GB 左右的硬盘 ( 本文中 如不作特殊说明, 均以 1M = 1048576 字节为单位). 3. 现代硬盘结构简介 在老式硬盘中, 由于每个磁道的扇区数相等, 所以外道的记录密度要远低 于内道, 因此会浪费很多磁盘空间 (与软盘一样). 为了解决这一问题, 进一 步提高硬盘容量, 人们改用等密度结构生产硬盘. 也就是说, 外圈磁道的扇区 比内圈磁道多. 采用这种结构后, 硬盘不再具有实际的3D参数, 寻址方式也改 为线性寻址, 即以扇区为单位进行寻址. 为了与使用3D寻址的老软件兼容 (如使用BIOS Int13H接口的软件), 在硬 盘控制器内部安装了一个地址翻译器, 由它负责将老式3D参数翻译成新的线性 参数. 这也是为什么现在硬盘的3D参数可以有多种选择的原因 (不同的工作模 式, 对应不同的3D参数, 如 LBA, LARGE, NORMAL). 4. 扩展 Int 13H 简介 虽然现代硬盘都已经采用了线性寻址, 但是由于基本 Int 13H 的制约, 使 用 BIOS Int 13H 接口的程序, 如 DOS 等还只能访问 8 G 以内的硬盘空间. 为了打破这一限制, Microsoft 等几家公司制定了扩展 Int 13H 标准 (Extended Int13H), 采用线性寻址方式存取硬盘, 所以突破了 8 G 的限制, 而且还加入了对可拆卸介质 (如活动硬盘) 的支持. 二. Boot Sector 结构简介 1. Boot Sector 的组成 Boot Sector 也就是硬盘的第一个扇区, 它由 MBR (Master Boot Record), DPT (Disk Partition Table) 和 Boot Record ID 三部分组成. MBR 又称作主引导记录占用 Boot Sector 的前 446 个字节 ( 0 to 0x1BD ), 存放系统主引导程序 (它负责从活动分区中装载并运行系统引导程序). DPT 即主分区表占用 64 个字节 (0x1BE to 0x1FD), 记录了磁盘的基本分区 信息. 主分区表分为四个分区项, 每项 16 字节, 分别记录了每个主分区的信息 (因此最多可以有四个主分区). Boot Record ID 即引导区标记占用两个字节 (0x1FE and 0x1FF), 对于合法 引导区, 它等于 0xAA55, 这是判别引导区是否合法的标志. Boot Sector 的具体结构如下图所示 (参见 NightOwl 大侠的文章): 0000 ------------------------------------------------ Master Boot Record 主引导记录(446字节) 01BD 01BE ------------------------------------------------ 01CD 分区信息 1(16字节) 01CE ------------------------------------------------ 01DD 分区信息 2(16字节) 01DE ------------------------------------------------ 01ED 分区信息 3(16字节) 01EE ------------------------------------------------ 01FD 分区信息 4(16字节) ------------------------------------------------ 01FE 01FF 55 AA ------------------------------------------------ 2. 分区表结构简介 分区表由四个分区项构成, 每一项的结构如下: BYTE State : 分区状态, 0 = 未激活, 0x80 = 激活 (注意此项) BYTE StartHead : 分区起始磁头号 WORD StartSC : 分区起始扇区和柱面号, 底字节的低6位为扇区号, 高2位为柱面号的第 9,10 位, 高字节为柱面号的低 8 位 BYTE Type : 分区类型, 如 0x0B = FAT32, 0x83 = Linux 等, 00 表示此项未用 BYTE EndHead : 分区结束磁头号 WORD EndSC : 分区结束扇区和柱面号, 定义同前 DWORD Relative : 在线性寻址方式下的分区相对扇区地址 (对于基本分区即为绝对地址) DWORD Sectors : 分区大小 (总扇区数) 注意: 在 DOS / Windows 系统下, 基本分区必须以柱面为单位划分 ( Sectors * Heads 个扇区), 如对于 CHS 为 764/255/63 的硬盘, 分区的 最小尺寸为 255 * 63 * 512 / 1048576 = 7.844 MB. 3. 扩展分区简介 由于主分区表中只能分四个分区, 无法满足需求, 因此设计了一种扩展 分区格式. 基本上说, 扩展分区的信息是以链表形式存放的, 但也有一些特 别的地方. 首先, 主分区表中要有一个基本扩展分区项, 所有扩展分区都隶属于它, 也就是说其他所有扩展分区的空间都必须包括在这个基本扩展分区中. 对于 DOS / Windows 来说, 扩展分区的类型为 0x05或0x0F(>8GB). 除基本扩展分区以外的其他所有扩展分区则以链表的形式级联存放, 后 一个扩展分区的数据项记录在前一个扩展分区的分区表中, 但两个扩展分区 的空间并不重叠. 扩展分区类似于一个完整的硬盘, 必须进一步分区才能使用. 但每个扩 展分区中只能存在一个其他分区. 此分区在 DOS/Windows 环境中即为逻辑盘. 因此每一个扩展分区的分区表 (同样存储在扩展分区的第一个扇区中)中最多 只能有两个分区数据项(包括下一个扩展分区的数据项). 扩展分区和逻辑盘的示意图如下: 三. 系统启动过程简介 系统启动过程主要由一下几步组成(以硬盘启动为例): 1. 开机 :-) 2. BIOS 加电自检 ( Power On Self Test -- POST ) 内存地址为 0ffff:0000 3. 将硬盘第一个扇区 (0头0道1扇区, 也就是Boot Sector) 读入内存地址 0000:7c00 处. 4. 检查 (WORD) 0000:7dfe 是否等于 0xaa55, 若不等于 则转去尝试其他启动介质, 如果没有其他启动介质则显示 "No ROM BASIC" 然后死机. 5. 跳转到 0000:7c00 处执行 MBR 中的程序. 6. MBR 首先将自己复制到 0000:0600 处, 然后继续执行. 7. 在主分区表中搜索标志为活动的分区. 如果发现没有活动 分区或有不止一个活动分区, 则转停止. 8. 将活动分区的第一个扇区读入内存地址 0000:7c00 处. 9. 检查 (WORD) 0000:7dfe 是否等于 0xaa55, 若不等于则 显示 "Missing Operating System" 然后停止, 或尝试 软盘启动. 10. 跳转到 0000:7c00 处继续执行特定系统的启动程序. 11. 启动系统 ... 以上步骤中 2,3,4,5 步是由 BIOS 的引导程序完成. 6,7,8,9,10 步由MBR中的引导程序完成. 一般多系统引导程序 (如 SmartFDISK, BootStar, PQBoot 等) 都是将标准主引导记录替换成自己的引导程序, 在运行系统启动程序 之前让用户选择要启动的分区. 而某些系统自带的多系统引导程序 (如 lilo, NT Loader 等) 则可以将自己的引导程序放在系统所处分区的第一个扇区中, 在 Linux 中即为 SuperBlock (其实 SuperBlock 是两个扇区). 注: 以上各步骤中使用的是标准 MBR, 其他多系统引导程序的引导 过程与此不同. 第二部分 技术资料 第一章 扩展 Int13H 技术资料 一. 简介 设计扩展 Int13H 接口的目的是为了扩展 BIOS 的功能, 使其支持 多于1024柱面的硬盘, 以及可移动介质的琐定, 解锁及弹出等功能. 二. 数据结构 1. 数据类型约定 BYTE 1 字节整型 ( 8 位 ) WORD 2 字节整型 ( 16 位 ) DWORD 4 字节整型 ( 32 位 ) QWORD 8 字节整型 ( 64 位 ) 2. 磁盘地址数据包 Disk Address Packet (DAP) DAP 是基于绝对扇区地址的, 因此利用 DAP, Int13H 可以轻松地逾 越 1024 柱面的限制, 因为它根本就不需要 CHS 的概念. DAP 的结构如下: struct DiskAddressPacket { BYTE PacketSize; // 数据包尺寸: //(固定值，恒等于16，即10H，指本结构所占用的存储空间) BYTE Reserved; // ==0 WORD BlockCount; // 要传输的数据块个数(以扇区为单位) DWORD BufferAddr; // 传输缓冲地址(segment:offset) QWORD BlockNum; // 磁盘起始绝对块地址 }; PacketSize 保存了 DAP 结构的尺寸, 以便将来对其进行扩充. 在 目前使用的扩展 Int13H 版本中 PacketSize 恒等于 16. 如果它小于 16, 扩展 Int13H 将返回错误码( AH=01, CF=1 ). BlockCount 对于输入来说是需要传输的数据块总数, 对于输出来说 是实际传输的数据块个数. BlockCount = 0 表示不传输任何数据块. BufferAddr 是传输数据缓冲区的 32 位地址 (段地址:偏移量). 数据 缓冲区必须位于常规内存以内(1M). BlockNum 表示的是从磁盘开始算起的绝对块地址(以扇区为单位), 与分区无关. 第一个块地址为 0. 一般来说, BlockNum 与 CHS 地址的关系 是: BlockNum = (cylinder * NumberOfHeads + head) * SectorsPerTrack + sector - 1; 其中 cylinder, head, sector 是 CHS 地址, NumberOfHeads 是磁盘 的磁头数, SectorsPerTrack 是磁盘每磁道的扇区数. 也就是说 BlockNum 是沿着 扇区->磁道->柱面 的顺序记数的. 这一顺 序是由磁盘控制器虚拟的, 磁盘表面数据块的实际排列顺序可能与此不同 (如为了提高磁盘速度而设置的间隔因子将会打乱扇区的排列顺序). 3. 驱动器参数数据包 Drive Parameters Packet 驱动器参数数据包是在扩展 Int13H 的取得驱动器参数子功能调用中 使用的数据包. 格式如下: struct DriveParametersPacket { WORD InfoSize; // 数据包尺寸: //(固定值，等于26，即1AH，指本结构所占用的存储空间) WORD Flags; // 信息标志 DWORD Cylinders; // 磁盘柱面数 DWORD Heads; // 磁盘磁头数 DWORD SectorsPerTrack; // 每磁道扇区数 QWORD Sectors; // 磁盘总扇区数 WORD SectorSize; // 扇区尺寸 (以字节为单位) }; 信息标志用于返回磁盘的附加信息, 每一位的定义如下: 0 位: 0 = 可能发生 DMA 边界错误 1 = DMA 边界错误将被透明处理 如果这位置 1, 表示 BIOS 将自动处理 DMA 边界错误, 也就是说 错误代码 09H 永远也不会出现. 1 位: 0 = 未提供 CHS 信息 1 = CHS 信息合法 如果块设备的传统 CHS 几何信息不适当的话, 该位将置 0. 2 位: 0 = 驱动器不可移动 1 = 驱动器可移动 3 位: 表示该驱动器是否支持写入时校验. 4 位: 0 = 驱动器不具备介质更换检测线 1 = 驱动器具备介质更换检测线 5 位: 0 = 驱动器不可锁定 1 = 驱动器可以锁定 要存取驱动器号大于 0x80 的可移动驱动器, 该位必须置 1 (某些驱动器号为 0 到 0x7F 的设备也需要置位) 6 位: 0 = CHS 值是当前存储介质的值 (仅对于可移动介质), 如果 驱动器中有存储介质, CHS 值将被返回. 1 = CHS 值是驱动器支持的最大值 (此时驱动器中没有介质). 7 - 15 位: 保留, 必须置 0. 三. 接口规范 1. 寄存器约定 在扩展 Int13H 调用中一般使用如下寄存器约定: ds:si ==> 磁盘地址数据包( disk address packet ) dl ==> 驱动器号 ah ==> 功能代码 / 返回码 在基本 Int13H 调用中, 0 - 0x7F 之间的驱动器号代表可移动驱动器 0x80 - 0xFF 之间的驱动器号代表固定驱动器. 但在扩展 Int13H 调用中 0x80 - 0xFF 之间还包括一些新出现的可移动驱动器, 比如活动硬盘等. 这些驱动器支持先进的锁定,解锁等功能. ah 返回的错误码除了标准 Int13H 调用规定的基本错误码以外,又增加 了以下错误码: B0h 驱动器中的介质未被锁定 B1h 驱动器中的介质已经锁定 B2h 介质是可移动的 B3h 介质正在被使用 B4h 锁定记数溢出 B5h 合法的弹出请求失败 2. API 子集介绍 1.x 版的扩展 Int13H 调用中规定了两个主要的 API 子集. 第一个子集提供了访问大硬盘所必须的功能, 包括 检查扩展 In13H 是否存在( 41h ), 扩展读( 42h ), 扩展写( 43h ), 校验扇区( 44h ), 扩展定位( 47h ) 和 取得驱动器参数( 48h ). 第二个子集提供了对软件控制驱动器锁定和弹出的支持, 包括 检查扩展 Int13H 是否存在( 41h ), 锁定/解锁驱动器( 45h ), 弹出驱动器( 46h ), 取得驱动器参数( 48h ), 取得扩展驱动器改变状态( 49h ), int 15h. 如果使用了调用规范中不支持的功能, BIOS 将返回错误码 ah = 01h, CF = 1. 3. API 详解 1) 检验扩展功能是否存在 入口: AH = 41h BX = 55AAh DL = 驱动器号 返回: CF = 0 AH = 扩展功能的主版本号 AL = 内部使用 BX = AA55h CX = API 子集支持位图 CF = 1 AH = 错误码 01h, 无效命令 这个调用检验对特定的驱动器是否存在扩展功能. 如果进位标志置 1 则此驱动器不支持扩展功能. 如果进位标志为 0, 同时 BX = AA55h, 则 存在扩展功能. 此时 CX 的 0 位表示是否支持第一个子集, 1位表示是否 支持第二个子集. 对于 1.x 版的扩展 Int13H 来说, 主版本号 AH = 1. AL 是副版本号, 但这仅限于 BIOS 内部使用, 任何软件不得检查 AL 的值. 2) 扩展读 入口: AH = 42h DL = 驱动器号 DS:DI = 磁盘地址数据包(Disk Address Packet) 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用将磁盘上的数据读入内存. 如果出现错误, DAP 的 BlockCount 项中则记录了出错前实际读取的数据块个数. 3) 扩展写 入口: AH = 43h AL 0 位 = 0 关闭写校验 1 打开写校验 1 - 7 位保留, 置 0 DL = 驱动器号 DS:DI = 磁盘地址数据包(DAP) 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用将内存中的数据写入磁盘. 如果打开了写校验选项, 但 BIOS 不支持, 则会返回错误码 AH = 01h, CF = 1. 功能 48h 可以检测BIOS是否 支持写校验. 如果出现错误, DAP 的 BlockCount 项中则记录了出错前实际写入的数 据块个数. 4) 校验扇区 入口: AH = 44h DL = 驱动器号 DS:DI = 磁盘地址数据包(Disk Address Packet) 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用校验磁盘数据, 但并不将数据读入内存.如果出现错误, DAP 的 BlockCount 项中则记录了出错前实际校验的数据块个数. 5) 锁定/解锁驱动器 入口: AH = 45h AL = 0 锁定驱动器 = 1 驱动器解锁 = 02 返回锁定/解锁状态 = 03h-FFh - 保留 DL = 驱动器号 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用用来缩定指定驱动器中的介质. 所有标号大于等于 0x80 的可移动驱动器必须支持这个功能. 如果 在支持可移动驱动器控制功能子集的固定驱动器上使用这个功能调用, 将 会成功返回. 驱动器必须支持最大255次锁定, 在所有锁定被解锁之前, 不能在物理上 将驱动器解锁. 解锁一个未锁定的驱动器,将返回错误码 AH= B0h. 如果锁定一 个已锁定了255次的驱动器, 将返回错误码 AH = B4h. 锁定一个没有介质的驱动器是合法的. 6) 弹出可移动驱动器中的介质 入口: AH = 46h AL = 0 保留 DL = 驱动器号 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用用来弹出指定的可移动驱动器中的介质. 所有标号大于等于 0x80 的可移动驱动器必须支持这个功能. 如果 在支持可移动驱动器控制功能子集的固定驱动器上使用这个功能调用, 将 会返回错误码 AH = B2h (介质不可移动). 如果试图弹出一个被锁定的介质 将返回错误码 AH = B1h (介质被锁定). 如果试图弹出一个没有介质的驱动器, 则返回错误码 Ah = 31h (驱动器 中没有介质). 如果试图弹出一个未锁定的可移动驱动器中的介质, Int13h会调用 Int15h (AH = 52h) 来检查弹出请求能否执行. 如果弹出请求被拒绝则返回错误码(同 Int15h). 如果弹出请求被接受,但出现了其他错误, 则返回错误码 AH = B5h. 7) 扩展定位 入口: AH = 47h DL = 驱动器号 DS:DI = 磁盘地址数据包(Disk Address Packet) 返回: CF = 0, AH = 0 成功 CF = 1, AH = 错误码 这个调用将磁头定位到指定扇区. 8) 取得驱动器参数 入口: AH = 48h DL = 驱动器号 DS:DI = 返回数据缓冲区地址 返回: CF = 0, AH = 0 成功 DS:DI 驱动器参数数据包地址, (参见前面的文章) CF = 1, AH = 错误码 这个调用返回指定驱动器的参数. 9) 取得扩展驱动器介质更换检测线状态 入口: AH = 49h DL = 驱动器号 返回: CF = 0, AH = 0 介质未更换 CF = 1, AH = 06h 介质可能已更换 这个调用返回指定驱动器的介质更换状态. 这个调用与 Int13h AH = 16h 子功能调用相同, 只是允许任何驱动器 标号. 如果对一台支持可移动介质功能子集的固定驱动器使用此功能,则永远 返回 CF = 0, AH = 0. 简单地将可移动介质锁定再解锁就可以激活检测线, 而无须真正更换介质. 10) Int 15h 可移动介质弹出支持 入口: AH = 52h DL = 驱动器号 返回: CF = 0, AH = 0 弹出请求可能可以执行 CF = 1, AH = 错误码 B1h 或 B3h 弹出请求不能执行 这个调用是由 Int13h AH=46h 弹出介质功能调用内部使用的.

difference between a packet and a frame

A packet and a frame are both packages of data moving through a network.

A packet exists at Layer 3 of the OSI Model, whereas a frame exists at Layer 2 of the OSI Model.

Layer 2 is the Data Link Layer. The best known Data Link Layer protocol is Ethernet.

Layer 3 is the Network Layer. The best know Network Layer protocol is IP (Internet Protocol).

To move through a network, a packet is encapsulated into one or more frames, depending upon the MTU size.

TCP/IP 结构模型：4层与 OSI 7层比较

TCP/IP 结构事实上并不严格遵循 OSI 模型。但当前关于如何使用分层模型来描述 TCP/IP 又没有一个统一的协定。一般承认 TCP/IP 比7层 OSI 模型层次少（3到5层）。这里我们以4层 TCP/IP 结构进行讲解。

TCP/IP 结构中忽略了 OSI 模型中的某些特征，只综合了部分相邻 OSI 层的特征并分离其它各层。信息由4层结构中的应用层传送到物理层。当发送数据时，每层将其从上层接收到的信息作为本层数据，并在数据前添加控制信息头，然后一起传送到下一层。每层的接收数据过程与以上发送过程正好相反，其中在数据被传送到上一层之前要将其控制信息头移去。

TCP/IP 4 层模型以及每层主要功能描述如下：

应用层（Application Layer）

TCP/IP 组中的应用层综合了 OSI 应用层、表示层以及会话层的功能。因此，在 TCP/IP 结构中，传输层以上的任何过程都称之为应用。在 TCP/IP 中，使用套接字（socket）和端口描述应用程序通信路径。大多数应用层协议与一个或多个端口号相关联。

传输层（Transport Layer）

TCP/IP 结构中包含两种传输层协议。其一传输控制协议（TCP），确保信息传输过程。其二用户数据报协议（UDP），直接传输数据报，而不需要提供端对端可靠校验。两种协议对应不同的应用具有各自功能。

网络层（Network Layer）

TCP/IP 网络层中的主要协议是网际协议（IP）。所有网络层以下或以上的各层通信在跨越 TCP/IP 协议栈时，都必须通过 IP 完成。此外，网络层还包含部分支持性协议，如 ICMP，实施和管理路由过程。

网络访问层（Network Access Layer）

在 TCP/IP 结构中，网络访问层由数据链路层和物理层合并而成。TCP/IP 网络访问层并没有重新定义新标准，而是有效利用原有数据链路层和物理层标准。很多 RFC 中描述了 IP 如何使用数据链路协议并作为其接口界面，如以太网、令牌环、FDDI、HSSI 和 ATM 等。物理层中规定了硬件通信属性，但它不直接作为网络层及以上层的 TCP/IP 协议的接口。



TCP/IP 4 层模型

另： OSI 7层
7 Application
6 Presentation
5 Session
4 Transport
3 Network
2 Data Link
1 Physical

layer 5 6 7 are not part of the tcp/ip stack

lkd2 笔记 1

comments 20080708
内核通常由：
1.负责响应中断的中断服务程序
2.管理多个进程分享处理器时间的调度程序
3.负责管理进程地址空间的内存管理程序
4.网络、进程间通信的系统服务程序组成

处理器在任何指定时间点上的活动范围：
1.内核空间，处于进程上下文， 代表某个特定进程在执行
2.内核空间，处于中断上下文， 与任何进程无关， 处理某个特定中断
3.用户空进，执行用户进程Linux内核并不区分线程和其他一般的进程.对内核来说， 所有的进程都一样，只不过是其中的一些共享资源而已。

comments 20080709
内核开发中必须牢记的：
1.no libc
2.Gnuc 扩展. 内核使用到的c扩展
a. inline 消除函数调用和返回的开销（寄存器存储和恢复） You should use static while defining inline function. such as static inline void dog(int size); 内联函数必须在使用之前就定义好， 否则编译器没法把这个函数展开. 实践中一般在头文件中定义内联函数。
b. 内联汇编 在偏近底层或对执行时间有严格要求的地方，一般使用汇编语言。
c. 分支声明,对于条件选择语句,gcc内建了一条指令用于优化， 在一个条件经常出现或者该条件很少出现的时候 编译器可以根据这条指令对条件选择分支进行优化。比如 likely() unlikely() 例子： if(likely(foo)){ ...; } /* foo 通常都不会为0 */ if(unlikely(foo)){ ...; } /* foo 通常都为0 */ 使用分支声明 一定要确定 这个条件绝大多数条件下都成立。使用得当，性能会得到提升，否则反而会下降。 unlikely() 在内核使用的更广泛，因为if往往判断一种特殊的情况。
3. 没有内存保护机制，内核中发生的内存错误会导致oops。 内核中内存都不分页，每用掉一个字节，物理内存就减少一个字节。加新功能必须注意。
4. 不要轻易在内核中使用浮点数
5. 容量小而固定的栈 内核栈大小随体系结构而变。x86上栈的大小在编译时配置可以是8k也可以是4k。 从历史上来说， 栈的大小是两页。It means, 32bit 8k 64bit 16k
6. 同步和并发
a.linux是抢占式的多任务操作系统，内核必须对多任务进行同步。
b.linux支持多处理器
c.中断是异步到来的 d.linux内核可以抢占 常有解决竞争的办法是使用自旋锁和信号量
7. 可移植性的重要性 大部分c代码应该与体系无关。诸如保持字节序，64位对齐，不假定字长和页面长度等准则都有助于移植性

Chapter 3
linux系统的线程实现非常特别， 它对线程和进程并不特别区分。对linux而言线程只不过是一种特殊的进程线程之间（同一进程中的线程）可以共享虚拟内存，但拥有各自的虚拟处理器comments 20080710
2.6内核为每个进程分配一个内核栈 大小为8k（两个页，可配置）。在栈的尾端保存一个thread_info结构. 这种方式便于计算thread_info的地址. current() thread_info->task存放的是指向该任务实际task_struct的指针x86系统上 current通过current_thread_info()计算thread_info地址。该操作把栈指针的后13位屏蔽 %esp andl ~(8192-1) （假定栈大小是8k）esp 是栈寄存器最后current 通过current_thread_info->task;得到task_struct的地址

process state:
As its name implies, the state field of the process descriptor describes what is currently happening to the process. It consists of an array of flags, each of which describes a possible process state. In the current Linux version, these states are mutually exclusive, and hence exactly one flag of state always is set; the remaining flags are cleared.
The following are the possible process states:
TASK_RUNNINGThe process is either executing on a CPU or waiting to be executed.
TASK_INTERRUPTIBLEThe process is suspended (sleeping) until some condition becomes true. Raising a hardware interrupt, releasing a system resource the process is waiting for, or delivering a signal are examples of conditions that might wake up the process (put its state back to TASK_RUNNING).
TASK_UNINTERRUPTIBLELike TASK_INTERRUPTIBLE, except that delivering a signal to the sleeping process leaves its state unchanged. This process state is seldom used. It is valuable, however, under certain specific conditions in which a process must wait until a given event occurs without being interrupted. For instance, this state may be used when a process opens a device file and the corresponding device driver starts probing for a corresponding hardware device. The device driver must not be interrupted until the probing is complete, or the hardware device could be left in an unpredictable state.
TASK_STOPPEDProcess execution has been stopped; the process enters this state after receiving a SIGSTOP, SIGTSTP, SIGTTIN, or SIGTTOU signal.
TASK_TRACEDProcess execution has been stopped by a debugger. When a process is being monitored by another (such as when a debugger executes a ptrace( ) system call to monitor a test program), each signal may put the process in the TASK_TRACED state.
-----------------------------------------------------
Two additional states of the process can be stored both in the state field and in the exit_state field of the process descriptor; as the field name suggests, a process reaches one of these two states only when its execution is terminated:
EXIT_ZOMBIE Process execution is terminated, but the parent process has not yet issued a wait4( ) or waitpid( ) system call to return information about the dead process. [*]Before the wait( )-like call is issued, the kernel cannot discard the data contained in the dead process descriptor because the parent might need it. [*] There are other wait( ) -like library functions, such as wait3( ) and wait( ), but in Linux they are implemented by means of the wait4( ) and waitpid( ) system calls.
EXIT_DEAD The final state: the process is being removed by the system because the parent process has just issued a wait4( ) or waitpid( ) system call for it.
Changing its state from EXIT_ZOMBIE to EXIT_DEADavoids race conditions due to other threads of execution that execute wait( )-like calls on the same process.The value of the state field is usually set with a simple assignment.
For instance: p->state = TASK_RUNNING;
The kernel also uses the set_task_state and set_current_state macros: they set the state of a specified process and of the process currently executed, respectively. Moreover, these macros ensure that the assignment operation is not mixed with other instructions by the compiler or the CPU control unit. Mixing the instruction order may sometimes lead to catastrophic results.

当一个程序执行了系统调用或者触发了某个异常，它就陷入内核空间。此时，我们称内核“代表进程执行"并处于进程上下文中。系统调用和异常处理程序是对内核明确定义的接口，进程只有通过这些接口才能陷入内核执行。系统中所有进程都是init进程的后代，系统中的每一个进程都有一个父进程init进程的task_struct是作为init_task静态分配的。next_task() prev_task() 实现访问前一个和后一个进程task_struct for_each_task() 遍历整个任务队列根据元素地址得到包含它的结构地址的方法
typedef struct test{
char a[10];
int b;
short c
;}TEST;
/* ptr: pointer of the member
type: type of the container
member: member name*/
#define container_of(ptr, type, member) ({\ (type *)((char *)ptr - offsetof(type, member));})#define offsetof(TYPE, MEMBER) ((size_t) &((TYPE *)0)->MEMBER)
int main()
{
TEST tmp;
TEST *p;
p = container_of(&tmp.b, TEST, b);
printf("%p, %p\n", &tmp, p)
;}
linux创建进程方式： fork() & exec()fork(): 通过拷贝当前进程创建一个子进程。 与父进程的区别仅仅在于pid ppid以及某些资源和统计量exec(): 负责读取可执行文件， 并将其载入地址空间开始运行写时拷贝，内核并不复制整个进程地址空间，而是让父子进程共享同一个拷贝，只有在写入数据的时候，数据才被复制，从而使父子进程拥有各自的拷贝。
比如：fork()后立即exec()就不需要复制整个父进程的地址空间，这时fork()的实际开销就是复制父进程的也表以及给子进程创建唯一的进程描述符。　这样可以避免拷贝大量根本不会被使用的数据。do_fork() 在copy_process()返回后，新创建的子进程被唤醒并让其投入运行。内核有意这么做，避免写时拷贝的额外开销.vfork()不拷贝父进程的页表项。子进程作为父进程的一个单独的线程在它的地址空间里运行，　父进程被阻塞，直到子进程退出或者执行exec()。

线程在linux里的实现
从内核的角度来说，linux并没有线程的概念，他把所有的线程都当作进程来实现。线程被当作去其他进程共享某些资源的进程。每个线程都有唯一属于自己的task_struct.内核线程 独立运行在内核空间的标准进程内核线程没有独立的地址空间　他的mm指针为NULL　只在内核空间运行。int kernel_thread(int (*fn) (void *), void *arg, unsigned long flag)进程退出 主要靠do_exit()完成。
1.将task_struct->flags = PF_EXITING
2.exit_mm()放弃进程占用的mm_sturct,如果没有别的进程使用他 就彻底释放他
3.exit_sem() _exit_files() _exit_fs() exit_namespace()
4.exit_notify() 修改子进程的父进程。把当前进程状态设置为EXIT_ZOMBIE
5.schedule() 切换到其他进程运行此时进程处于EXIT_ZOMBIE, 他所占的资源只有内核栈 task_struct thread_info.此时进程存在的唯一目的就是向父进程提供信息。
父进程执行wait4()do_wait()->wait_task_zombie()->release_task()->_unhash_process() 从pidhash上删除该进程，同时从task_list删除该进程最后put_task_struct释放内核栈，task_struct and thread_info。
内核通过exit_parent() 来保证结束进程的children不会成为孤儿。 在该进程所在进程组找一个进程作为其children的父进程，如果没有就以init进程作为父进程。这样就可以避免系统中出现永远处于僵死状态的进程。

install kernel source for fedora8

学习kernel过程中，源代码必不可少， 一般情况下安装好的系统都不带source code。
找了个安装source code的方式：

Install Kernel Source
07 November 2007
Installing the kernel source is typically NOT needed unless you wish to re-compile your kernel or for some special development. However in some cases the kernel headers may be required.

There are 3 basic steps involved in installing the kernel source.

Download the desired kernel source (matching your current kernel if required)
Installing the SRC.RPM package
Using rpmbuild to prepare the source into a usable state
NOTE: Following these steps will consume at least 400MB of disk space!

1. Download the Kernel Source

Obtaining Kernel Source (for default Fedora 8 kernel)

The default kernel source can be found through any Fedora mirror. Look in the directory "/source/SRPMS/" under the "/8/" directory . For example: http://download.fedora.redhat.com/pub/fedora/linux/releases/8/Fedora/source/SRPMS/.

kernel-2.6.23.1-42.fc8.src.rpm 31-Oct-2007 00:06 46M

Obtaining Kernel Source (for an updated Fedora 8 kernel)

If you updated your kernel, then the typically the last 2 or 3 releases of the source of the kernel will be available though the Fedora updates. IF YOU REQUIRE you can (try to) match the kernel source with your running kernel.

Look in the update directory on most Fedora mirror sites. For example: http://download.fedora.redhat.com/pub/fedora/linux/updates/8/SRPMS/.

Obtaining Kernel Source through 'yum' (for latest Fedora 8 kernel)

There are yum utilities which will download the LATEST kernel source. If it does not find anything, then there are no updates (yet) use the DEFAULT Fedora kernel source.

[mirandam@charon ~]$ sudo yum install yum-utils[mirandam@charon ~]$ cd downloads[mirandam@charon downloads]$ yumdownloader --source kernel
2. Install the Kernel Source

Install the kernel.src.rpm that you chose to download in the previous steps.

[mirandam@charon downloads]$ sudo rpm -ivh kernel-2.6.23.1-42.fc8.src.rpm 1:kernel ########################################### [100%]
Ignore group kojibuilder does not exist or user kojibuilder does not exist warnings.

3. Prepare the Source

To prepare the source to be useable:

[mirandam@charon downloads]$ sudo rpmbuild -bp --target=$(uname -m) /usr/src/redhat/SPECS/kernel.spec
The source files will be properly located in /usr/src/redhat/BUILD/kernel-2.6.23/. There are 2 useful directories:

linux-2.6.23.ARCH/
This will have the standard kernel.org kernel WITH Fedora patches and updates. The ARCH architecture will match the output of uname -m, usually i686. You may use noarch for the --target= option if you wish.
vanilla/
This will have the standard kernel.org kernel ONLY (no patches or updates).
NOTE: The process Fedora uses to build and configure kernels can be found in greater depth on the Fedora Wiki. The above information is very basic and meant to allow access to the source and not necessarily build it.
